Prestressed Concrete Steel Strand Grade 270 1860mpa Uncoated Pc Strand
Tel : +86 15666019977
WhatsApp : 8615666019977
Email:vien@sdjbcsteel.com
Contact us

DETAILS

PPODUCT INTRODUCTION

PC STRAND is mainly used as auxiliary reinforcing strand for concrete structure.eg, long spanned bridges on railway and highway, overhead crane construction, multi-floor industrial building ,etc

1  Item pc strand
2.Specification1 x 7 wire, 1x19 wire15.2/15.7mm, 17.8mm, 21.6mm,21.8mm
3.AppliacationWidely Used for any aqueduct, viaduct, bridge, tunnel and railway construction
4. CertificateISO9001:2000 SGS BV
5.StandardASTM A416,BS5896,JIS G3536,GB / T5223,EN10138
6. T / S1860MPA,1770MPA,1670MPA,1570MPA,1470MPA
7.FeaturesHigh tensile, low relaxtion
8.TwistLeft and right hand lay
9.Factory TestNorminal diameter, breaking force, elongation at rupture, tensile strenght, stress relaxastion property, relax value at 1000h

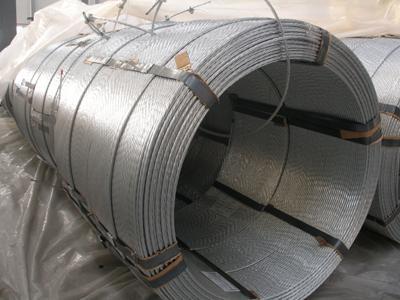

10.PackingStandard Export Package (Wrapped by steel strips, waterproof cloth sheet, wooden pallet)
11. OriginalJiNan, China
12.  PaymentT / T,LC

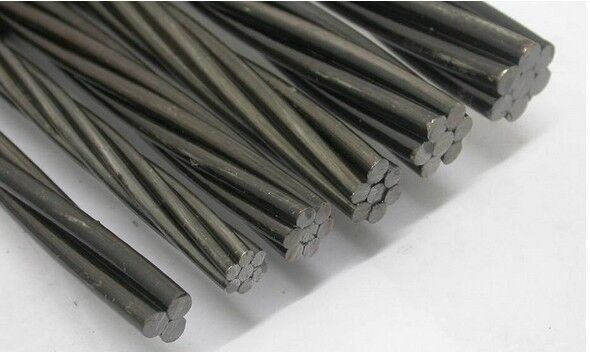

Prestressed steel strand is a multi-strand steel strand composed of 2, 3, 7 or 19 high-strength steel wires, and has undergone stress relief treatment (stabilization treatment), suitable for prestressed concrete or similar purposes. After surface treatment, the high-carbon steel wire rod is cold drawn into steel wire, and then a certain number of steel wires are twisted into a strand according to the structure of the steel strand, and then formed by a stable process of eliminating stress. The main characteristics of prestressed steel strands are high strength, good relaxation performance, and relatively straight when unfolded. Common tensile strength grades are 1720, 1770, 1860 MPa, this steel has a higher yield strength.

Our Strand meets customers' requirements as well as GB/T5224, ASTM416, BS5896, En10138-3, JIS G3536.


Stranded wire structureDiameterTensile StrengthBreaking StrengthElongation
L0≥500mm
Relaxation 1000hours value no more than(initial load at70% specification breaking load)

MmMPaKN%%
   1×715.241860  2603.52.5-4.5
17.80355
18.90409
21.60530
1×19S(1+9+9)17.81770368
21.8554
17.81860387
21.8583
