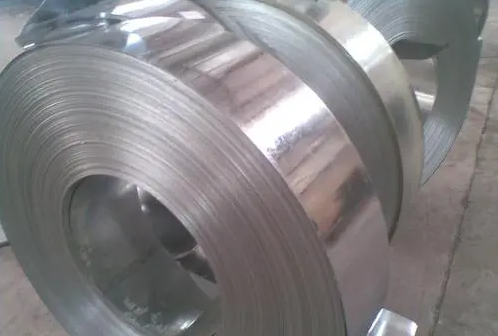

| Product Name | Galvanized Steel strip |
| Spangle | Small/ Regular/ Big/ Zero(no) |
| Technical Standar | EN10147/EN10142/DIN 17162/JIS G3302/ASTM A653 |
| Grade | Dx51 D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD , S350GD, S350GD, S550GD; SGCC, SGHC, |
| SGCH, SGH340, SGH400, SGH440, SGH490,SGH540,SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275),SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, |
| SQ CR33 (230), SQ CR37 (255),SQCR40 (275), |
| SQ CR50 (340), SQ CR80 (550); |
| or or as customer's requirement |
| Thickness | 0.12-6.00mm,or as customer's requirement |
| Width | 600mm-1500mm,according to customer's requirement |
| Type of Coating | Hot Dipped Galvanized Steel(HDGl)Electro-Galvanised Steel(EGI) |
| Zinc Coating | 20-275g/m2 |
| Surface Treatment | Passivation(C),Oiling(0),Lacquer sealing(L),Phosphating(P),Untreated(U) |
| Surface Structure | Normal spangle coating(NS),minimized spangle coating(MS),spangle-free(FS) |
| Quality | Approved by SGS,ISO |
| ID | 508mm/610mm,according to customer's requirement |
|
|
